# CONVAIR - Editorial

Author: Arthur Nascimento
Tester: Felipe Mota
Editorialist: Rajarshi Basu

Medium

# PREREQUISITES:

Implementation, Logic, DSU, Small To Large

# PROBLEM:

We are given a graph with N \leq 10^5 nodes and M \leq 2*10^5 edges. The graph may have multiple edges between two cities, no self-loops, and might not be connected. We should make a new graph, such that it is connected. Let the degree of each node i before be degPrev_i and the degrees of each node i in the new graph be degNow_i. We have to minimise the value of \sum_{i=1}^{n} |degNow_i - degPrev_i|, which is denoted as the inconvenience.

# QUICK EXPLANATION:

How fast can you read this?
• We will have several connected components, some of which are trees, and some which are not trees. First, all the non-tree components can be connected without changing the degree of each node. Just connect one of their non-spanning-tree-edges in cyclic order
• We can use a non-spanning-tree-edge of a non-tree component, and connect a tree component with it without increasing the inconvenience. (Think how)
• We can use a non-spanning-tree-edge of a non-tree component to connect two tree components to it, by adding 2 to the inconvenience.
• If all non-spanning-tree-edges are used up, just add extra edges till everything is connected. Extra edges combine two components at the cost of 2 to the overall inconvenience.
• Maintain the non-spanning-tree-edge information using DSU with Small to Large Merging.

# EXPLANATION:

Observation 1

The problem wants us to keep the degrees as similar to the original graph as possible. Thus, it seems that the best thing for us to do is try to keep as many edges of the original graph and make everything connected using as few additional edges/ edge changes possible.

Observation 2

For each of the connected component, it can be of two types. Let us assume that there are C nodes in the component. Then:

• If there are exactly C-1 edges, we call it a tree-component, since it’s in the form of a tree. If we remove any edges, then it no longer remains connected.
• If there are K edges, where K > C-1, then we call it a non-tree component. In particular, there will be K - (C-1) extra edges that, even if removed, will not disconnect the component. We will call all such edge an ExtraEdge.
Observation 3 - Handling Some Simplifications

It’s often a good idea to simplify our problem into smaller and easier parts. For example, here, let’s just assume all our components were either tree components or non-tree components.

• If all were Tree components, and there were x of them, the best-case scenario is adding x-1 new edges to make everything connected, thereby adding a total of 2*(x-1) to the total inconvenience.
• What if all the component’s are non-Tree components? Well, just take one ExtraEdge from each component, and use them to connect the components in a cycle order.

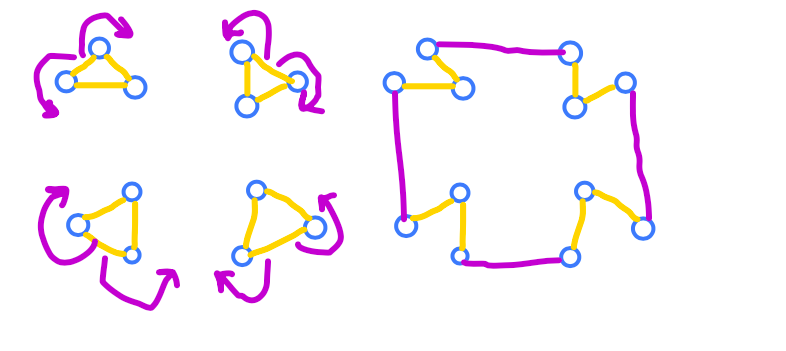

Confused with connecting the Non-Tree Components?

Here, see this diagram. Hopefully, it will clear things up. The left side has 4 non-tree component, while the right side shows how they can be cyclically connected. (If it reminds you of the Transition State of Wittig Reaction, I am sorry for the PTSD).

Observation 4

Let’s get back to the original problem.

After connecting all the Non-Tree Components into a single (super) Non-Tree component (exercise: figure out why they will still be non-tree, hint: see diagram in Observation 3), we’ll still have some Tree Components left.
Now, we can connect a Tree Component with the (super) Non-Tree Component, by using an ExtraEdge, without adding any inconvenience.

We will call this Operation 1

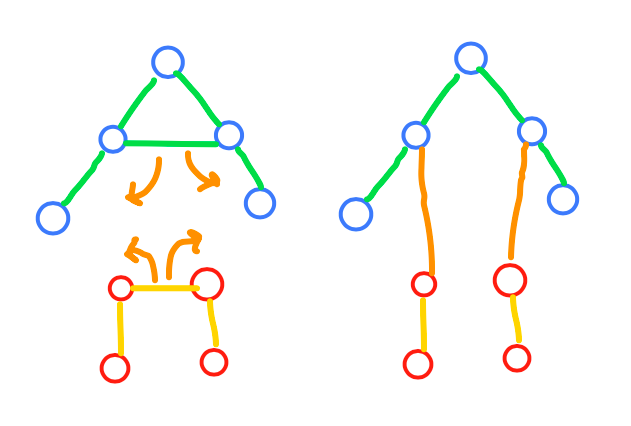

We love diagrams so here is another

EdgeCase?

To do this operation, we need atleast 2 nodes in the component.

Observation 5

In Operation 1, we connected a single Tree Component to the super NonTree component by using 1 ExtraEdge. However, can we add two Tree components by using 1 ExtraEdge?

It's Diagram Time

Do note however that this adds 2 to the total inconvenience.

We will call this Operation 2

EdgeCase

There aren’t any. Even if there is exactly 1 node in the component, this operation is possible.

Observation 6

What if we exhaust all ExtraEdges? Well, we can just add new edges to connect each Tree Component to the super- NonTree Component. Each of these adds 2 to the total inconvenience.

We will call these Operation 3

Putting Everything together

So here is what we will do:

• First, we form the super-Non-Tree component.
• Next, we do Operation 1 as long as possible. Thus, we either run out of Tree components, in which case we are done, or we run out of ExtraEdges.
• In case we run out of ExtraEdges, keep doing Operation 3 till everything becomes connected.
Wait, we never use Operation 2?

TL;DR: No.

Here's why

Let’s say we have x ExtraEdges and y Tree Components. Now, let us assume y>x since that is the only interesting case. The only difference between Operation 1 and Operation 2 is that, Operation 1 connects 1 Tree component with 0 inconvenience while Operation 2 connects 2 Tree components to the super Non Tree Component with total cost of 2. Each of them use up 1 ExtraEdge. Further, in both cases, we need to use Operation 3 to connect the remaining stuff.

• Now, if we used Operation 1 x times, our total inconvenience = x*0 + (y-x)*2
\implies inconvenience = 2*y - 2*x.
• If we used Operation 2 z times, and Operation 1 (x-z) times, then
inconvenience = (x-z)*0 + z*2 + (y - 2*z - (x-z))*2
\implies inconvenience= 2*z + 2*(y-2*z - x + z)
\implies inconvenience= 2*z + 2*(y-z-x)
\implies inconvenience= 2*z + 2*y - 2*z - 2*x
\implies inconvenience= 2*y - 2*x.
• Hence we see that we obtain the same inconvenience whether or not we use any Operation 2.

Implementation

First, maintain all the ExtraEdges for the components in the graph using DSU and small-to-large merging inside the DSU (see Editorialist code for details).
Also maintain the adjacency lists of all the nodes as multisets.
Lastly, do all the operations by just iterating over the list of ExtraEdges and Tree components. Again, see Editorialist code for more details.

Time Complexity

Since we are using multiple operations using sets, and small-to-large inside the DSU, our overall complexity is O(nlogn).

# QUICK REMINDERS:

There can be multi-edges remember? Don’t forget to use multiset instead of set to represent the adjacency lists.

C++ NOTE: While erasing in a multiset, we have to pass in an iterator to delete one occurrence. If we just pass a value, the multiset erases all the occurrences of the value.

# SOLUTIONS:

Setter's Code
#include <bits/stdc++.h>
using namespace std;
int main(){
int t;
cin >> t;
while(t--){
int n, m;
cin >> n >> m;
vector<int> uf(n);
iota(uf.begin(), uf.end(), 0);
vector<vector<pair<int,int>>> indep(n), spanning(n);
function<int(int)> find = [&](int x){
return x == uf[x] ? x : uf[x] = find(uf[x]);
};
auto merge = [&](vector<pair<int,int>> &a, vector<pair<int,int>> &b){
if(a.size() < b.size()){
for(auto & e : a) b.push_back(e);
swap(a, b);
} else {
for(auto & e : b) a.push_back(e);
}
b.clear();
};
auto join = [&](int u, int v){
int fu = find(u);
int fv = find(v);
if(fu == fv){
indep[fu].push_back({u, v});
} else {
spanning[fu].push_back({u, v});
merge(indep[fu], indep[fv]);
merge(spanning[fu], spanning[fv]);
uf[fv] = fu;
}
};
int incovenience = 0;
auto incov_join = [&](int u, int v){
u = find(u);
v = find(v);
if(indep[u].size() < indep[v].size()) swap(u, v);
if(indep[u].size() + indep[v].size() == 0){
incovenience += 2;
spanning[u].push_back({u, v});
merge(spanning[u], spanning[v]);
} else {
auto edge_u = indep[u].back(); indep[u].pop_back();
if (indep[v].empty()) {
auto edge_v = spanning[v].back(); spanning[v].pop_back();
spanning[u].push_back({edge_u.first, edge_v.first});
spanning[u].push_back({edge_u.second, edge_v.second});
} else {
auto edge_v = indep[v].back(); indep[v].pop_back();
spanning[u].push_back({edge_u.first, edge_v.first});
indep[u].push_back({edge_u.second, edge_v.second});
}
merge(spanning[u], spanning[v]);
merge(indep[u], indep[v]);
}
uf[v] = u;
};
vector<int> deg(n);
for(int i = 0; i < m; i++){
int u, v;
cin >> u >> v;
u--; v--;
join(u, v);
deg[u]++;
deg[v]++;
}
vector<pair<int,int>> comp;
vector<int> nodes;
for(int i = 0; i < n; i++) if(i == uf[i] && spanning[i].empty()) {
nodes.push_back(i);
}
for(int i = 0; i < n; i++) if(i == uf[i] && !spanning[i].empty()) {
comp.push_back({indep[i].size(), i});
}
if (comp.empty()) {
cout << (n - 1) * 2 << ' ' << n - 1 << '\n';
for(int i = 1; i < n; i++){
cout << nodes[0] + 1 << ' ' << nodes[i] + 1 << '\n';
}
continue;
}
sort(comp.rbegin(), comp.rend());
for(int i = 1; i < comp.size(); i++){
incov_join(comp[0].second, comp[i].second);
}
int root = find(comp[0].second);
while(indep[root].size() > 0 && nodes.size() >= 2){
auto edge_i = indep[root].back(); indep[root].pop_back();
int u = nodes.back(); nodes.pop_back();
int v = nodes.back(); nodes.pop_back();
spanning[root].push_back({u, edge_i.first});
spanning[root].push_back({v, edge_i.second});
incovenience += 2;
}
if(nodes.size()){
spanning[root].push_back({root, nodes.back()});
incovenience += 2;
}
merge(spanning[root], indep[root]);
cout << incovenience << ' ' << spanning[root].size() << '\n';
for(auto e : spanning[root]){
deg[e.first]--;
deg[e.second]--;
assert(e.first != e.second);
cout << e.first + 1 << ' ' << e.second + 1 << '\n';
}
int res = 0;
for(int i = 0; i < n; i++)
res += abs(deg[i]);
assert(res == incovenience);
}
return 0;
}

Tester's Code
#include <bits/stdc++.h>
using namespace std;
int main(){
int t;
cin >> t;
while(t--){
int n, m;
cin >> n >> m;
vector<int> uf(n);
iota(uf.begin(), uf.end(), 0);
vector<vector<pair<int,int>>> indep(n), spanning(n);
function<int(int)> find = [&](int x){
return x == uf[x] ? x : uf[x] = find(uf[x]);
};
auto merge = [&](vector<pair<int,int>> &a, vector<pair<int,int>> &b){
if(a.size() < b.size()){
for(auto & e : a) b.push_back(e);
swap(a, b);
} else {
for(auto & e : b) a.push_back(e);
}
b.clear();
};
auto join = [&](int u, int v){
int fu = find(u);
int fv = find(v);
if(fu == fv){
indep[fu].push_back({u, v});
} else {
spanning[fu].push_back({u, v});
merge(indep[fu], indep[fv]);
merge(spanning[fu], spanning[fv]);
uf[fv] = fu;
}
};
int incovenience = 0;
auto incov_join = [&](int u, int v){
u = find(u);
v = find(v);
if(indep[u].size() < indep[v].size()) swap(u, v);
if(indep[u].size() + indep[v].size() == 0){
incovenience += 2;
spanning[u].push_back({u, v});
merge(spanning[u], spanning[v]);
} else {
auto edge_u = indep[u].back(); indep[u].pop_back();
if (indep[v].empty()) {
auto edge_v = spanning[v].back(); spanning[v].pop_back();
spanning[u].push_back({edge_u.first, edge_v.first});
spanning[u].push_back({edge_u.second, edge_v.second});
} else {
auto edge_v = indep[v].back(); indep[v].pop_back();
spanning[u].push_back({edge_u.first, edge_v.first});
indep[u].push_back({edge_u.second, edge_v.second});
}
merge(spanning[u], spanning[v]);
merge(indep[u], indep[v]);
}
uf[v] = u;
};
vector<int> deg(n);
for(int i = 0; i < m; i++){
int u, v;
cin >> u >> v;
u--; v--;
join(u, v);
deg[u]++;
deg[v]++;
}
vector<pair<int,int>> comp;
vector<int> nodes;
for(int i = 0; i < n; i++) if(i == uf[i] && spanning[i].empty()) {
nodes.push_back(i);
}
for(int i = 0; i < n; i++) if(i == uf[i] && !spanning[i].empty()) {
comp.push_back({indep[i].size(), i});
}
if (comp.empty()) {
cout << (n - 1) * 2 << ' ' << n - 1 << '\n';
for(int i = 1; i < n; i++){
cout << nodes[0] + 1 << ' ' << nodes[i] + 1 << '\n';
}
continue;
}
sort(comp.rbegin(), comp.rend());
for(int i = 1; i < comp.size(); i++){
incov_join(comp[0].second, comp[i].second);
}
int root = find(comp[0].second);
while(indep[root].size() > 0 && nodes.size() >= 2){
auto edge_i = indep[root].back(); indep[root].pop_back();
int u = nodes.back(); nodes.pop_back();
int v = nodes.back(); nodes.pop_back();
spanning[root].push_back({u, edge_i.first});
spanning[root].push_back({v, edge_i.second});
incovenience += 2;
}
if(nodes.size()){
spanning[root].push_back({root, nodes.back()});
incovenience += 2;
}
merge(spanning[root], indep[root]);
cout << incovenience << ' ' << spanning[root].size() << '\n';
for(auto e : spanning[root]){
deg[e.first]--;
deg[e.second]--;
assert(e.first != e.second);
cout << e.first + 1 << ' ' << e.second + 1 << '\n';
}
int res = 0;
for(int i = 0; i < n; i++)
res += abs(deg[i]);
assert(res == incovenience);
}
return 0;
}

Editorialist's Code
#include <stdio.h>
#include <stdlib.h>
#include <iostream>
#include <vector>
#include <algorithm>
#include <fstream>
#include <queue>
#include <deque>
#include <iomanip>
#include <cmath>
#include <set>
#include <stack>
#include <map>
#include <unordered_map>

#define FOR(i,n) for(int i=0;i<n;i++)
#define FORE(i,a,b) for(int i=a;i<=b;i++)
#define ll long long
#define ld long double
#define vi vector<int>
#define pb push_back
#define ff first
#define ss second
#define ii pair<int,int>
#define iii pair<int,ii>
#define iiii pair<iii,int>
#define pll pair<ll,ll>
#define plll pair<ll,pll>
#define vv vector
#define endl '\n'

using namespace std;

const int MAXN = 100*1000 + 5;

struct DSU{
int parent[MAXN];
vv<ii> extraEdge[MAXN];
DSU(){
FOR(i,MAXN)parent[i] = i;
}
int find(int a){
if(parent[a] != a)parent[a] = find(parent[a]);
return parent[a];
}
bool isSame(int a,int b){
return find(a) == find(b);
}
void merge(int a,int b){
if(isSame(a,b)){
int pa = find(a);
extraEdge[pa].pb({a,b});
}else{
int pa = find(a);
int pb = find(b);
if(extraEdge[pa].size() > extraEdge[pb].size()){
parent[pb] = pa;
for(auto e: extraEdge[pb])extraEdge[pa].pb(e);
}else{
parent[pa] = pb;
for(auto e: extraEdge[pa])extraEdge[pb].pb(e);
}
}
}
};

multiset<int> g[MAXN];
void solve(){
DSU dsu;
int n,m;
cin >> n >> m;
FOR(i,n)g[i].clear();
FOR(i,m){
int a,b;
cin >> a >> b;
a--;b--;
dsu.merge(a,b);
g[a].insert(b);
g[b].insert(a);
}
vi allRootsNotTree;
vi allRootsTree;
FOR(i,n){
if(dsu.find(i) == i){
if(dsu.extraEdge[i].empty())allRootsTree.pb(i);
else allRootsNotTree.pb(i);
}
}

vv<ii> allExtraEdges;
vv<ii> newEdges;
int s = allRootsNotTree.size();
if(s > 1){
FOR(i,s){
ii ed = dsu.extraEdge[allRootsNotTree[i]].back();
ii edn = dsu.extraEdge[allRootsNotTree[(i+1)%s]].back();
//cout << ed.ff << " " << ed.ss << endl;
//cout << ed.ff << " " << ed.ss << endl;
g[ed.ff].erase(g[ed.ff].find(ed.ss));
g[ed.ss].erase(g[ed.ss].find(ed.ff));
g[ed.ss].insert(edn.ff);
g[edn.ff].insert(ed.ss);
if(i == 0)allExtraEdges.pb({edn.ff,ed.ss});
}
}

if(s > 1){
FOR(i,s)dsu.extraEdge[allRootsNotTree[i]].pop_back(); // since all these were already used.
}

FOR(i,s){
for(auto e : dsu.extraEdge[allRootsNotTree[i]]){
allExtraEdges.pb(e);
}
}
int x = 0;
vi listOf1Nodes;
while(!allExtraEdges.empty()){
auto e = allExtraEdges.back();
if(allRootsTree.empty())break;
int item = allRootsTree.back();allRootsTree.pop_back();
if(g[item].empty())listOf1Nodes.pb(item);
else{
int nitem = *(g[item].begin());
g[item].erase(g[item].find(nitem));
g[e.ff].erase(g[e.ff].find(e.ss));
g[e.ss].erase(g[e.ss].find(e.ff));
g[nitem].erase(g[nitem].find(item));
g[item].insert(e.ff);
g[e.ff].insert(item);
g[nitem].insert(e.ss);
g[e.ss].insert(nitem);

allExtraEdges.pop_back();
}
}
for(auto e : listOf1Nodes)allRootsTree.pb(e);
for(auto e : allExtraEdges){
if(allRootsTree.size() == 0){
break;
}
if(allRootsTree.size() == 1){
g[e.ff].erase(g[e.ff].find(e.ss));
g[e.ss].erase(g[e.ss].find(e.ff));
int root1 = allRootsTree.back();allRootsTree.pop_back();
g[e.ff].insert(root1);
g[e.ss].insert(root1);
g[root1].insert(e.ff);
g[root1].insert(e.ss);
x+=2;
break;
}

g[e.ff].erase(g[e.ff].find(e.ss));
g[e.ss].erase(g[e.ss].find(e.ff));
int root1 = allRootsTree.back();allRootsTree.pop_back();
int root2 = allRootsTree.back();allRootsTree.pop_back();
g[e.ff].insert(root1);
g[e.ss].insert(root2);
g[root1].insert(e.ff);
g[root2].insert(e.ss);
x+=2;
}

//cout << "SSGDFg" << endl;

int root1;
if(allRootsNotTree.empty())root1 = allRootsTree[0];
else root1 = allRootsNotTree[0];
for(auto e : allRootsTree){
if(allRootsNotTree.empty() and e == allRootsTree[0])continue;
x += 2;
g[e].insert(root1);
g[root1].insert(e);
}

vv<ii> allEdges;
FOR(i,n){
for(auto e: g[i]){
if(i < e){
allEdges.pb({i,e});
}
}
}
cout << x << " " << allEdges.size() << endl;
for(auto e: allEdges){
cout << e.ff+1 << " " << e.ss+1 << endl;
}
}

int main(){
ios_base::sync_with_stdio(0);
cin.tie(0);
cout.tie(0);
int t;
cin >> t;
while(t--)solve();
return 0;
}


Please give me suggestions if anything is unclear so that I can improve. Thanks

6 Likes

I was waiting for this
Time limit was strict or I didn’t know how to implement this efficiently.

2 Likes

what what what

As for me, I didn’t keep track of any info on the graph structure, only the degrees. Basically, I incremented all the 0s to 1s and made sure that a) the sum of degrees is even, b) there isn’t a degree greater than the sum of the remaining degrees.

To construct the system of flights, I paired the highest-degree node with the lowest-degree node for (sum of degrees / 2) steps.

EDIT: the complexity is O(n log n) because of the final step (I maintain a set of <degree, vertex> pairs, but I’m sure it’s possible to do it for O(n) time.

5 Likes

Here, # of non-spanning-tree-edges means # of cycles in the graph, right?
I seem to have done the same thing as suggested for 30, can someone give a strong test case?
https://www.codechef.com/viewsolution/34264541

Yes, I agree with you. I used two set to solve this problem. I think it is easy to prove the correctness of this algorithm, which is similar to greed.

https://www.codechef.com/viewsolution/34022684

4 Likes

Hello guys !!

I just tried to score partial in this question (as I didn’t know about the Disjoint set union) but I failed miserably because of some corner case.

Here is the link to my code which passed 2 out of 3 test files in sub task 1 and it would be of great help if you can help me in identifying which corner case I have missed.

I am doing it by counting the degree and nodes in each connected component and then all the connected component which are not a tree it, then will cause 0 inconvenience as we can connect them all in a cycle and then whatever extra edges (meaning pairs having multiple edges) are left out we can add 2*(no of trees) each by causing 1 inconvenience and if there are more left out then they will be added by causing inconvenience of 2.

1 Like

Same happened with me, passed 2 out of 3. Seem to have done as it’s in editorial.
https://www.codechef.com/viewsolution/34264541

no, they are different things

Yep that is correct as well. This was just my solution. I will include your solution as an easier alternate solution then. Also, I think it can be made linear time by maintaining queues for occurrences of all degrees, and then keeping track of queue with highest and lowest degrees that are non empty?

(To me, my solution was kindof obvious, and i didn’t bother thinking more about it. My bad. )

1 Like

Can you please define non-spanning-tree-edges? A non tree component’s extra edges (i.e. # of cycles ) => # of edges that can be removed

Even after removing those edges, the component remains connected. That is what editorialist is referring to as non-spanning-tree edges. Basically the edges, not in the spanning tree of the connected component.

number of cycles can be many, and is not related to extra edges. extra edges are just edges that dont belong to the spanning tree and belong to some cycle. but that doesn’t mean each edge <=> each cycle

1 Like

my approach was similar, I pair the largest-degree non-connected node with the largest-degree connected node and reduce their degree in this operation.
To get the largest-degree connected node I used a priority queue.

I think you need to sort in your approach so it can not be reduced to O(n)

1 Like

Hmm, that was the first approach I pursued in the contest, sadly it got WA, so I had to think of something else. It’s good to know there are several ways of attacking the problem.

As for sorting, that depends. It’s possible to sort for O(n) time using counting sort, so if that’s the only difficulty, it’s not a problem, I guess…

1 Like

M=2E5 so there is less than 500 possible degree, It could work with some effort

I think I have gotten the test case for which my code failing.

1
11 10
1 2
3 4
6 7
6 7
7 8
8 9
9 10
10 11
10 11
10 11

My code gives the minimum inconvenience to be 4 but it should have been 2.

This is what I had missed out on.

Thanks @rajarshi_basu for such great and sightful editorial.

1 Like

Tester Code is not giving correct ans on this test case
T =1
N= 13 M= 10
1 2 , 1 2 , 2 3 , 3 4 , 4 1, 5 6, 6 7, 7 5, 8 9, 10 11
tester output
2 11
1 2
2 3
3 4
4 7
5 6
6 7
1 10
5 11
1 8
2 9
1 13
actual cost is 4 and number of edges is 12 , i verify it on editorial solution
even vertex 12 is missing in solution , so mistake is clear .

Anyone up to prove/disprove my algorithm?
It recieved an AC.

First of all remove all edges from the graph and calculate degree of each node.

Define : charge of a node = current degree of node - actual degree in input graph.(once I have deleted all edges, current degree for any node = 0)

1. We have 2 set of nodes, set1 : nodes in spanning tree, nodes not yet in spanning tree.

2. Add node with most negative charge to set1 and all other nodes to set2.

3. While not all nodes are in set1, select node n1 from set1 and n2 from set2. n1 and n2 are nodes with most negative charges in their respective sets. Add an Edge between n1 and n2, readjust their charges, move n2 from set2 to set1.

4. While there are atleast 2 nodes in set1 which have a negative charge, choose the 2 most negative nodes from set1 and build an edge between them.

Implementation : https://www.codechef.com/viewsolution/34278709

3 Likes

I can prove it’s wrong!

First of all remove all edges from the graph and calculate degree of each node.

Your first step was to remove all the edges and just then calculate the degree … then the degree is 0 for all nodes!

I was just kidding, I understand you did the first step in reversed order. I did the same and I am convinced that it is correct, but I am not good at proving greedy algorithms

3 Likes

Yes mine was O(V+E)
Greedy and cases.
https://www.codechef.com/viewsolution/33698570

1 Like
